  Home > Oberdorfer Pumps > Centrifugal (Pump Only) >

Oberdorfer Centrifugal Pump Model# 172B-08
Oberdorfer Centrifugal Pump Model# 172B-08

List Price: $456.06
Our Price: $325.76
You save $130.30!


Availability: In Stock, Usually Ships in 24 Hours
Product Code: 172B-08

Description

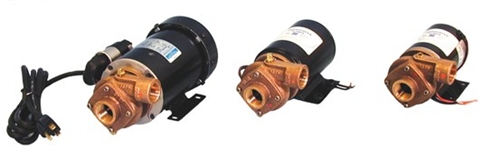

Oberdorfer Centrifugal Pump Model# 172B-08

Product Information


These Oberdorfer™ centrifugal pumps have a single open vane rotating impeller. Liquid enters at the center and is thrown outward radically by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.

The flow of these pumps can be conveniently controlled by a throttling valve in the discharge line. Horsepower demand will decrease as the pressure increases. Maximum horsepower occurs with a wide open discharge.

FEATURES

  • Rugged corrosion resistant bronze construction
  • Compact and light
  • Mechanical Seals - Type 6A
  • Nitrile Standard
  • Fluoroelastomer Options
  • TEFC Motors with corrosion resistant passivated 316 SS Shafts
  • 1/10 HP permanent Magnet 12V, 24V, 32V DC Motors
  • Insulated leads
  • Rubber base grommets for vibration dampening
  • 1/13 HP Permanent Magnet 12V DC Motor
  • 172L threaded shaft style
  • 1/8 HP Capacitor Start 50/60 HZ, 115V & 220V AC Motors
  • Ignition protection
  • Thermal overload protection
  • Power cord with plug

Ideal for:

  • Marine Air Conditioning
  • Engine Block Temperature Control
  • Radiator and Heat Exchanger Circulation
  • Baitwell Circulation

DRIVE

One of the outstanding features of this pump and motor unit is its compact size. Although small, adequate motor power is available. A.C and D.C. motors are available.

LIQUIDS & TEMPERATURES

This pump is more than capable of pumping water, water solutions, and a wide range of commercial chemicals.

Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped. However, when pumping viscous liquids (as compared with water) a reduction in flow and pressure occurs and the required horsepower increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Questions about the chemical compatibility of special liquids should be referred to the factory. The pump uses a mechanical type shaft seal with a Nitrile rubber element. It is suitable for water, oils, and some mild solvents and is limited to 212o F, fluoroelastomer is available for up to 400o F.

SUCTION LIFT

These pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used in the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability.
