  Home > Ametek Lamb Vac Motors >

Ametek 114786 Blower/Vacuum Motor 4M881

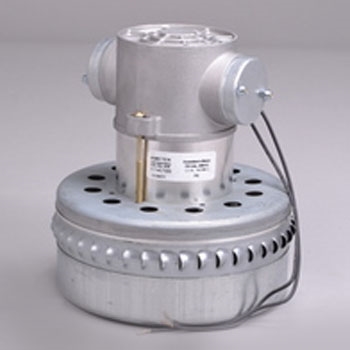

Ametek 114786 Lamb Blower/Vacuum Motor 4M881

Brand New, Authentic Ametek Lamb Motor
List Price: $550.00
Our Price: $546.07
You save $3.93!


Availability: In Stock, Ready to Ship
Product Code: 114786

Description Extended Information

Ametek Lamb 114786 Blower / Vacuum Motor 114786, 4M881

New Page 1
SPECIFICATIONS:
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 7.5 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral
Operating Temp : 32-104F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES:
Regulatory : UL Recognized
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:

Orifice
(In.) 		Current
(A) 		Input Power
(W) 		Speed
(RPM) 		Vacuum
(in. H2O) 		Air Flow
(CFM) 		Air Power
(Watts) 		Effic
(%)
2.000 10.50 1155 18842 006.6 133.2 103 9
1.750 10.60 1163 18742 010.3 127.0 154 13
1.500 10.70 1174 18655 016.4 116.2 224 19
1.250 10.70 1178 18637 025.5 100.9 303 26
1.125 10.60 1167 18740 030.9 089.8 326 28
1.000 10.30 1144 19020 036.8 077.3 334 29
0.875 10.00 1103 19450 042.7 063.7 320 29
0.750 09.50 1056 20017 048.7 049.9 286 27
0.625 09.00 1002 20675 053.8 036.3 229 23
0.500 08.40 942 21460 059.3 024.3 169 18
0.375 07.90 884 22282 064.3 014.4 109 12
0.250 07.40 840 22990 069.0 006.9 56 7
0.000 07.10 806 23587 073.9 000.0 0 0
