  Home > Ametek Lamb Vac Motors >

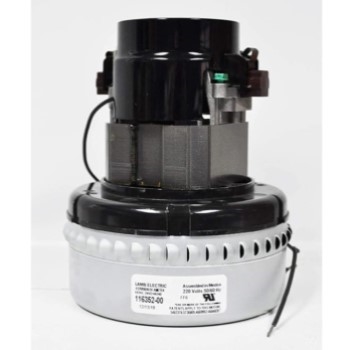

Ametek 116352-00 Blower / Vacuum Motor

Ametek 116352-00 Blower / Vacuum Motor

Brand New, Authentic Ametek Lamb Motor
List Price: $200.00
Our Price: $122.71
You save $77.29!


Availability: In Stock, Ready to Ship
Product Code: 116352-00

Description Extended Information

Ametek Lamb 116352-00 Blower / Vacuum Motor

Model: 116352-00 ( 5.7 in. 220 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 220 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES
Regulatory : UL Recognized, ,
Comm Bracket : Aluminum
Fan Bracket : Plastic
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:

Orifice
(In.) 		Current
(A) 		Input Power
(W) 		Speed
(RPM) 		Vacuum
(in. H2O) 		Air Flow
(CFM) 		Air Power
(Watts) 		Effic
(%)
2.000 06.40 1361 18715 004.0 108.3 50 4
1.750 06.30 1350 18855 007.0 106.5 89 7
1.500 06.30 1339 18998 013.5 103.4 174 13
1.250 06.20 1328 19140 023.2 100.4 273 21
1.125 06.20 1313 19306 029.9 092.3 233 18
1.000 06.00 1287 19596 038.8 083.2 379 29
0.875 05.90 1257 19948 047.8 070.7 397 32
0.750 05.60 1209 20535 057.7 057.0 386 32
0.625 05.30 1135 21429 066.9 042.6 335 29
0.500 04.90 1058 22472 075.3 029.0 256 24
0.375 04.50 978 23656 083.5 017.2 168 17
0.250 04.20 910 24550 091.0 008.0 85 9
0.000 04.00 854 25295 099.7 000.0 0 0
