  Home > Ametek Lamb Vac Motors >

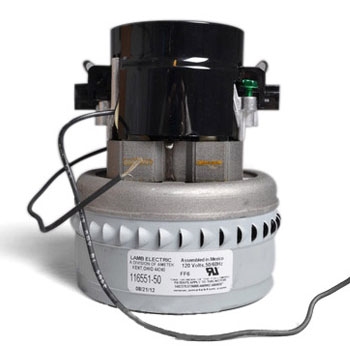

Ametek 116551 Blower / Vacuum Motor

Ametek 116551 Blower / Vacuum Motor

Brand New, Authentic Ametek Lamb Motor
List Price: $134.00
Our Price: $82.27
You save $51.73!


Availability: In Stock, Ready to Ship
Product Code: 116551

Description Extended Information

Ametek Lamb 116551-50 Blower / Vacuum Motor

Model: 116551-50 ( 4.8 in. 120 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 4.8 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral
Operating Temp : 32-104°F
Bearing System : Ball/Sleeve
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES
Regulatory : UL Recognized, CSA certified
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :


Orifice
(In.)		Current
(A)		Input Power
(W)		Speed
(RPM)		Vacuum
(in. H2O)		Air Flow
(CFM)		Air Power
(Watts)		Effic
(%)
2.000 06.9078119390 002.8 087.7294
1.750 06.8077019140 004.6 085.6466
1.500 06.9078619180 007.9 081.87610
1.250 06.9078919140 014.4 076.713016
1.125 06.9078619115 019.0 071.416020
1.000 06.9078319225 025.3 064.719325
0.875 06.7076519405 032.2 055.621128
0.750 06.6074719990 040.1 045.421429
0.625 06.1070120685 047.0 034.018827
0.500 05.7065421625 053.5 023.114522
0.375 05.2060422755 060.7 014.010017
0.250 04.8055823785 067.0 006.95410
0.000 04.5052424770 076.5 000.000
