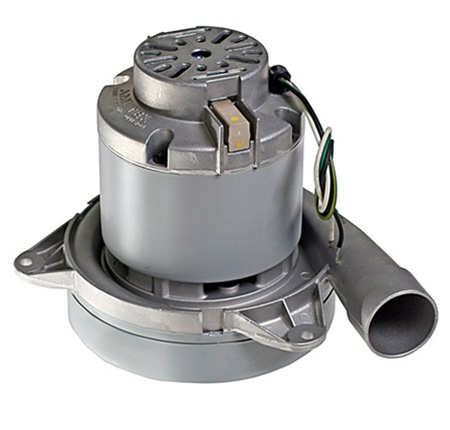

Ametek 117478-12 Blower / Vacuum Motor

Ametek 117478-12 Blower / Vacuum Motor

Brand New, Authentic Ametek Lamb Motor
List Price: $249.99
Our Price: $189.12
You save $60.87!


Availability: In Stock, Ready to Ship
Product Code: 117478-12

Description Extended Information

Ametek Lamb 117478-12 Blower / Vacuum Motor

Model: 117478-12 ( 7.2 in. 120 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 7.2 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Tangential
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES
Regulatory : UL Recognized
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :


Orifice
(In.)		Current
(A)		Input Power
(W)		Speed
(RPM)		Vacuum
(in. H2O)		Air Flow
(CFM)		Air Power
(Watts)		Effic
(%)
2.000 13.80157222310 004.7 115.8644
1.750 13.80157222310 007.8 114.21057
1.500 13.90158322235 013.5 110.417511
1.250 14.00159522140 024.6 103.529919
1.125 14.00159122150 033.1 097.237824
1.000 14.00159322135 044.5 089.146529
0.875 13.90158122285 058.3 078.053434
0.750 13.50154422550 072.9 064.154936
0.625 12.90147323095 086.4 048.549233
0.500 11.90137123970 096.8 032.837327
0.375 10.90126125050 105.5 019.323919
0.250 10.20117926015 112.5 008.811610
0.000 09.70111526745 120.0 000.000
