  Home > Ametek Lamb Vac Motors >

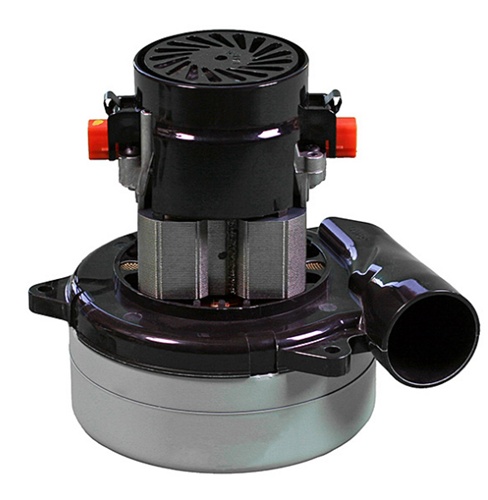

Ametek 117795-00 Blower / Vacuum Motor

Ametek 117795-00 Blower / Vacuum Motor

Brand New, Authentic Ametek Lamb Motor
List Price: $189.00
Our Price: $149.52
You save $39.48!


Availability: In Stock, Ready to Ship
Product Code: 117795-00

Description Extended Information

Ametek Lamb 117795-00 Blower/Vacuum Motor

Model: 117795-00 ( 5.7 in. 120 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Tangential
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES
Regulatory : UL Recognized, CSA certified
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:

Orifice
(In.)		Current
(A)		Input Power
(W)		Speed
(RPM)		Vacuum
(in. H2O)		Air Flow
(CFM)		Air Power
(Watts)		Effic
(%)
2.000 13.60154420860 004.6 111.9614
1.750 13.60154820915 007.6 110.0996
1.500 13.60154620913 013.1 104.416110
1.250 13.50153820976 023.3 096.626517
1.125 13.40152221063 031.0 089.932721
1.000 13.10148821206 040.0 080.437825
0.875 12.70144721575 050.6 069.241228
0.750 12.00137722085 061.5 055.840329
0.625 11.10127322816 072.9 042.136128
0.500 10.10116223743 083.3 028.728124
0.375 09.10105924805 093.3 017.118718
0.250 08.3096925771 101.7 008.29810
0.000 07.7089827296 111.0 000.000
